Teknik Detaylar

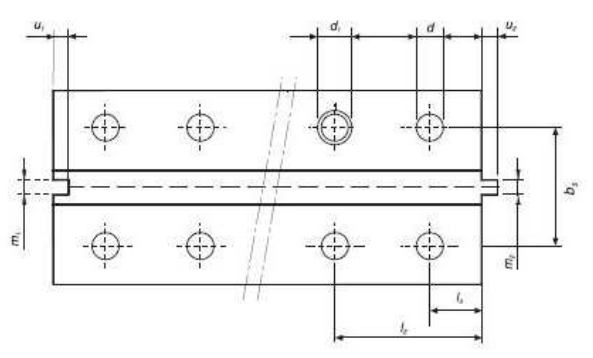

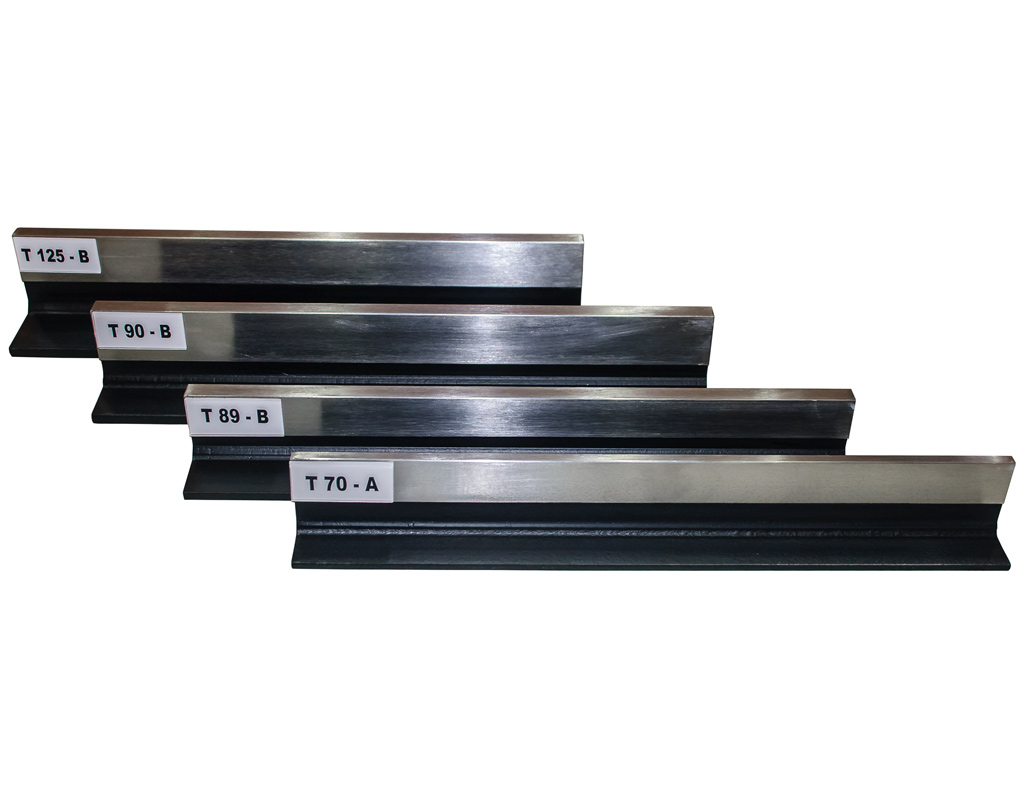

| b1 | h1 | h | k | n | c | f | g | m1 | m2 | u1 | u2 | |
| TS ISO 7465 | * | Tolerances / | Toleranslar | |||||||||
| Mart 2011 | ±1,5 | ±0,75 | ±0.1 |
+0,1 0 |
+3 0 |
±0,75 | ±0,75 |
+0,06 0 |
0 -0,06 |
±0,1 | ±0,1 | |
| T75/B | 75 | 62 | 61 | 10 | 30 | 8 | 9 | 7 | 3,00 | 2,97 | 3,50 | 3,00 |
| T89/B | 89 | 62 | 61 | 16 | 34 | 10 | 11,10 | 7,90 | 6,40 | 6,37 | 7,14 | 6,35 |
| T90/B | 90 | 75 | 74 | 16 | 42 | 10 | 10 | 8 | 6,40 | 6,37 | 7,14 | 6,35 |
| T125/B | 125 | 82 | 81 | 16 | 42 | 10 | 12 | 9 | 6,40 | 6,37 | 7,14 | 6,35 |
| T127-2/B | 127 | 89 | 88 | 16 | 51 | 10 | 15,90 | 12,70 | 6,40 | 6,37 | 7,14 | 6,35 |
| Technical Characteristics/ | Teknik özellikler | ||||||||
| TS ISO 7465 Mart 2011 |
S cm2 |
q1 Kg/m |
e cm |
lx-x cm4 |
Wx-x cm3 |
İx-x cm |
iy-y cm4 |
Wy-y cm3 |
İy-y cm |
| T75/B | 10,91 | 8,564 | 1,861 | 40,29 | 9,287 | 1,921 | 26,47 | 7,06 | 1,557 |
| T89/B | 15,77 | 12,38 | 2,032 | 59,83 | 14,35 | 1,948 | 52,41 | 11,78 | 1,823 |
| T90/B | 17,25 | 13,54 | 2,612 | 102,0 | 20,86 | 2,431 | 52,48 | 11,66 | 1,744 |
| T125/B | 22,82 | 17,91 | 2,430 | 151,0 | 26,16 | 2,572 | 159,1 | 25,46 | 2,641 |
| T127-2/B | 28,72 | 22,55 | 2,478 | 201,7 | 31,17 | 2,640 | 229,9 | 36,20 | 2,829 |

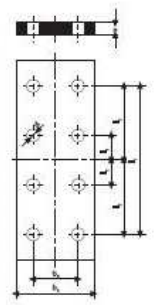

| Bağlantı pabuçları (mm) | Cıvata | Tıı | ||||||||
| TS ISO 7465 Mart 2011 | d | I1 | I2f | I3f | b2 | b3 | V | TS EN 4017 | DIN 7168 | |
| Toleranslar | ||||||||||
|
+3 0 |
±0,2 | ±0,2 | ±0,2 |
+3 0 |
||||||
| T75/B | 13 | 250 | 105 | 25 | 70 | 42 | 10 | M12X35 | M2 | |
| T89/B | 13 | 305 | 114,3 | 38,1 | 90 | 57,2 | 13 | M12x40 | M2 | |
| T90/B | 13 | 305 | 114,3 | 38,1 | 90 | 57,2 | 13 | M12X40 | M3 | |
| T125/B | 17 | 305 | 114,3 | 38,1 | 130 | 79,4 | 18 | M16X50 | M4 | |
| T127-2/B | 17 | 305 | 114,3 | 38,1 | 130 | 79,4 | 18 | M16x50 | M5 | |
